Large Bore Through Conduit API 6A Gate Valve 7 1/16 Inch Full Bore Pressure Seal Bi Directional Pipeline Grade

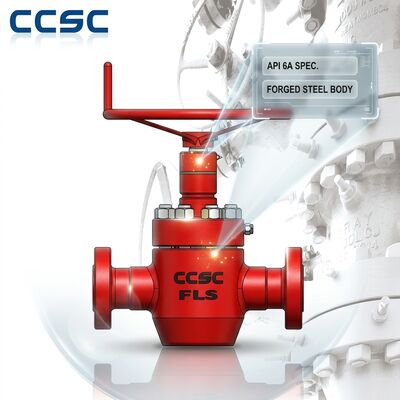

The CCSC large bore through conduit API 6A gate valve is a full bore, pressure seal bonnet valve developed for high rate production wells, pipeline manifold systems and surface flowline applications requiring minimal pressure loss and unrestricted tool passage. Offered in nominal bore sizes from 7-1/16 in to 11 in, the valve maintains the full internal diameter of the flowline across the gate, so there are no cavities, pockets or ledges where sand, wax, debris or hydrate particles can accumulate. The design is fully compliant with API 6A and follows the well proven FLS through conduit configuration that the industry has accepted for decades of severe service.

Because the bore is completely unobstructed in the open position, the large bore gate valve is the preferred isolation device on lines that must be pigged, gauged or inspected without removing the valve from service. The bi-directional, metal to metal sealing system gives dependable shutoff in either flow direction, and the pressure energised bonnet seal keeps the body joint tight as the line pressure climbs during shut in conditions. Gear operators are fitted as standard on the larger sizes to keep the operating effort low and to allow precise, controlled opening and closing of the valve.

• Genuine full bore opening: valve bore matches the flowline internal diameter for unrestricted flow, low pressure drop and full piggability.

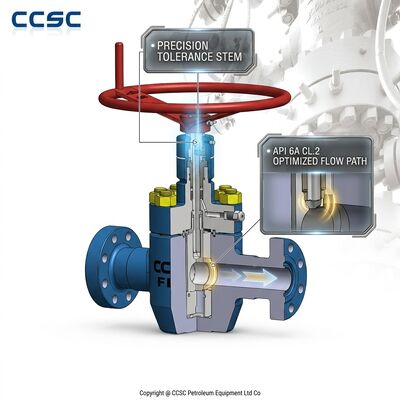

• Through conduit slab gate: smooth one piece gate retracts fully into the bonnet cavity, leaving no obstruction in the flow path.
• Large diameter range: available in 7-1/16 in, 9 in and 11 in sizes for high rate oil and gas transfer systems.
• Bi-directional sealing: metal to metal gate and seat seal delivers gas tight shutoff against pressure from either direction.

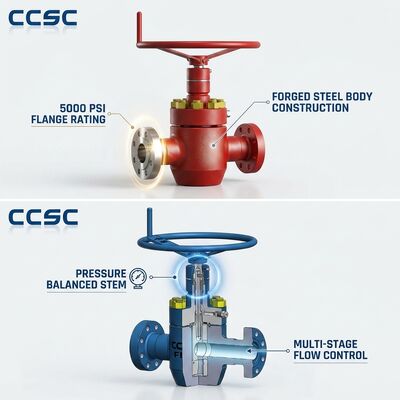

• Pressure seal bonnet: forged body design with pressure energised seal suited to high pressure, high cycle pipeline duty.
• Gear operator standard: low effort operation on large bores with rising stem indication of valve position.
• Flow efficient geometry: erosion resistant flow path that protects the sealing area from produced sand and abrasive media.

The large bore through conduit gate valve is applied on high rate wellhead production trees, trunk line manifold systems, pipeline launcher and receiver stations, tanker loading facilities and produced water transfer systems where full bore flow and pigging capability are mandatory. It is also widely used on gas export lines that require periodic intelligent pig inspection, because the unobstructed bore lets inspection tools pass through the valve without removing it from the line. The valve is equally at home in onshore gathering stations and offshore topside piping, and the large diameter configuration keeps flow velocities low, which reduces erosion and extends the service life of the sealing surfaces.

Large bore valves are manufactured with strict control of body forging quality, heat treatment response and dimensional verification of the full bore geometry. Each valve is hydrostatically shell tested and seat tested in both directions, with optional gas seal testing for critical services, and all test results are recorded against the serial number of the valve. For export shipment the valve is cleaned, dried and treated with rust preventive oil, the flanged ends are covered with steel or plastic protectors, and the assembly is secured in a reinforced plywood export crate with the operator protected against transit damage. Full quality documentation, including material certificates, welding records and dimensional inspection reports, is supplied with every order.
