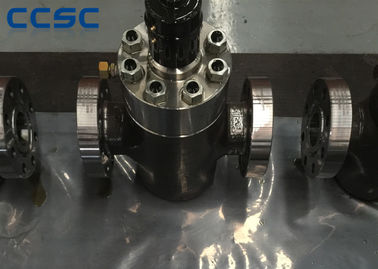

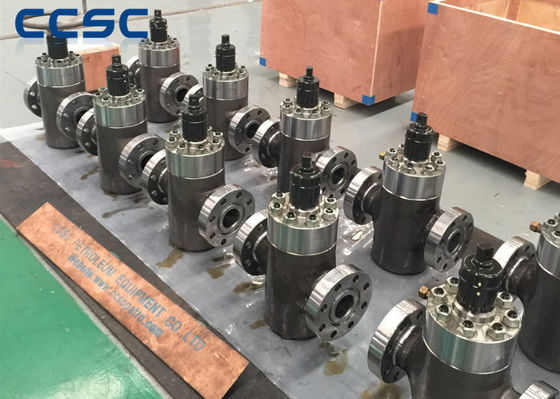

API 6A FLS High Pressure Gate Valve 2 1/16" 10000psi For Oilfield And Wellhead

API 6A FLS High Pressure Gate Valve 2 1/16" 10000psi For Oilfield And Wellhead
API 6A FLS High Pressure Gate Valve 2 1/16" 10000psi For Oilfield And Wellhead API 6A FLS High Pressure Gate Valve 2 1/16" 10000psi For Oilfield And Wellhead

Large Image :  API 6A FLS High Pressure Gate Valve 2 1/16" 10000psi For Oilfield And Wellhead

Product Details:
Place of Origin: China
Brand Name: CCSC
Certification: API 6A
Model Number: FLS type
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 30-40days
Payment Terms: T/T

API 6A FLS High Pressure Gate Valve 2 1/16" 10000psi For Oilfield And Wellhead

Description
Size: 2 1/16" Working Pressure: 10,000psi
Material Class: AA-HH Working Temperature: 75°F - 350°F
Processing Type: Forging PSL: 1-4
PR: 1-2 Color: All Color
High Light:

forged steel gate valve

,

high temperature gate valves

API 6A 2 1/16" 10000psi FLS Gate Valve for oilfield and wellhead



Gate Valve 'FLS' type is widely recognized as a high-quality valve for severe applications. It is a fullbore, through-conduit valve available in pressure ratings from 2,000 to 20,000 psi and bore sizes from 1 13/16 to 11 in. The FLS is our standard valve for critical requirements, including extreme sour and subsea applications, Easily equipped with Hydraulic Actuators for Manifold or Subsea service.

cameron manucal gate valve type 'fls'

FLS Gate Valves' feature:

  • 1. Forged or Cast Body & Bonnet, A wide range of body and trim materials to meet various operating conditions.
  • 2. Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
  • 3. Bi-directional Sealing,
  • 4. All internal parts can be inline changed,No special tools are needed to change gate and seat assembly.
  • 5. Heavy duty thrust bearing is used to absorb stem thrust and reduce operating torque.
  • 6. The Stem pin protects the stem and internal parts from failure by shearing if the handwheel is over-torqued

Available Specication

Bore Size 2 1/16"
Working Pressure 10,000psi
Material Class AA - HH
Working Temperature 75°F - 350°F
PSL 1 - 4
PR 1 - 2


Disclaimers:
CCSC PETROLEUM EQUIPMENT CO.,LTD is not an authorized agent or sales representative of CAMERON.
