|Size:||1 13/16"– 9”||Working Pressure:||2,000psi – 20,000psi|
|Material Class:||AA-HH||Working Temperature:||75°F - 350°F|
forged steel gate valve,
high temperature gate valves

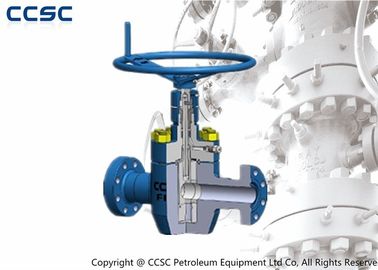

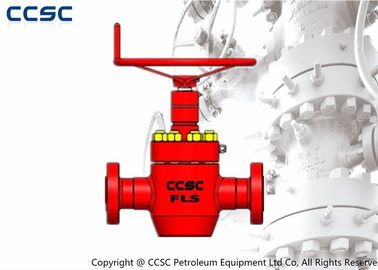

Gate Valve 'FLS' type is widely recognized as a high-quality valve for severe applications. It is a fullbore, through-conduit valve available in pressure ratings from 2,000 to 20,000 psi and bore sizes from 1 13/16 to 11 in. The FLS is our standard valve for critical requirements, including extreme sour and subsea applications, Easily equipped with Hydraulic Actuators for Manifold or Subsea service.
|Bore Size||1 13/16” – 9”|
|Working Pressure||2,000psi – 20,000psi|
|Material Class||AA - HH|
|Working Temperature||75°F - 350°F|
|PSL||1 - 4|
|PR||1 - 2|
CCSC PETROLEUM EQUIPMENT CO.,LTD is not an authorized agent or sales representative of CAMERON.
Contact Person: Jason
