API 6A High Pressure Gate Valve Size Ranging From 1 13/16"-9" Material Class AA-HH

API 6A High Pressure Gate Valve Size Ranging From 1 13/16"-9" Material Class AA-HH
API 6A High Pressure Gate Valve Size Ranging From 1 13/16"-9" Material Class AA-HH API 6A High Pressure Gate Valve Size Ranging From 1 13/16"-9" Material Class AA-HH

Large Image :  API 6A High Pressure Gate Valve Size Ranging From 1 13/16"-9" Material Class AA-HH

Product Details:
Place of Origin: China
Brand Name: CCSC
Certification: API 6A
Model Number: FC type
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 30-40days
Payment Terms: T/T

API 6A High Pressure Gate Valve Size Ranging From 1 13/16"-9" Material Class AA-HH

Description
Size: 1 13/16"– 9” Working Pressure: 2,000psi – 20,000psi
Material Class: AA-HH Working Temperature: 75°F - 350°F
Processing Type: Forging PSL: 1-4
PR: 1-2 Color: All Color
High Light:

forged steel gate valve

,

high temperature gate valves

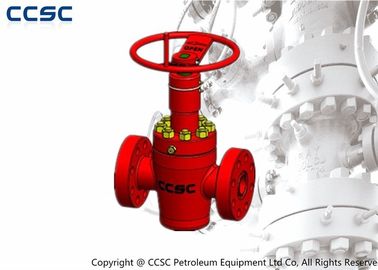

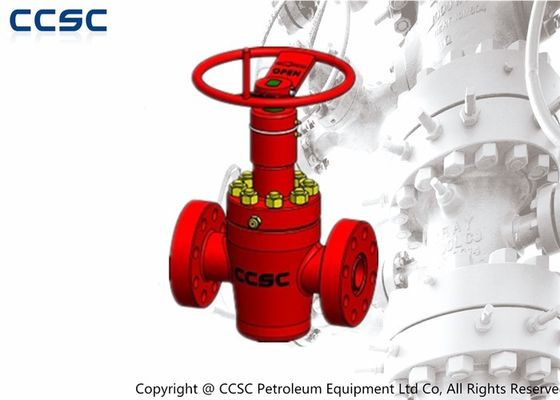

API 6A high pressure FC Gate Valve with size range from 1 13/16"-9"



Gate Valve 'FC' type is a field-proven valve which provides reliability and interchangeability, bi-directional sealing and a non-rising stem making it ideally suited for drilling Manifolds, X-mas trees and severe service,one piece gate helps to prevent line sediment from entering the body cavity and prevents pressure locks when the upstream pressure drops,Easily equipped with Hydraulic Actuators for Manifold or Subsea service.

API 6A GATE VALVE FC TYPE        API 6A High Pressure Gate Valve Size Ranging From 1 13/16"-9" Material Class AA-HH 1



API 6A Gate Valve FC type feature:

  • Forged or Cast Body & Bonnet, A wide range of body and trim materials to meet various operating conditions.
  • Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
  • Bi-directional Sealing,

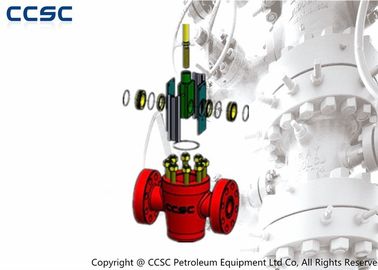

  • All internal parts can be inline changed,No special tools are needed to change gate and seat assembly.
  • Heavy duty thrust bearing is used to absorb stem thrust and reduce operating torque.
  • The Stem pin protects the stem and internal parts from failure by shearing if the handwheel is over-torqued
  • We are the proved vendor for top wellhead manufacturer in the Worldwide
  • 100% interchangable with Cameron FC Type
  • We try to save your 10% or more

Available Specication

Bore Size 1 13/16” – 9”
Working Pressure 2,000psi – 20,000psi
Material Class AA - HH
Working Temperature 75°F - 350°F
PSL 1 - 4
PR 1 - 2
Type Cameron FC Type


Disclaimers:
CCSC PETROLEUM EQUIPMENT CO.,LTD is not an authorized agent or sales representative of CAMERON.
