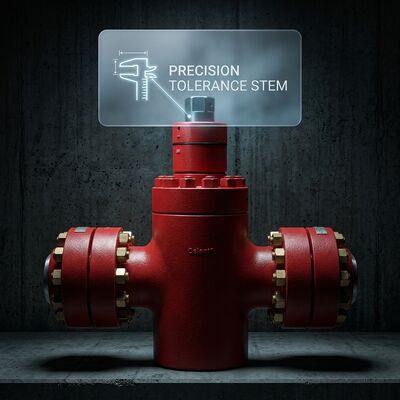

Forged Steel High Pressure Gate Valve API 6A FLS Type 4-1/16 Inch 10000psi with Metal-to-Metal Seal

The Forged Steel High Pressure Gate Valve API 6A FLS Type is engineered for the most demanding oilfield and industrial applications where uncompromising reliability under extreme pressure conditions is non-negotiable. Constructed from premium-grade forged steel, this valve delivers exceptional structural integrity, superior grain flow characteristics, and enhanced resistance to thermal fatigue compared to cast alternatives. Designed in full compliance with API 6A specifications, this gate valve is rated for working pressures up to 10,000psi and is ideally suited for wellhead assemblies, Christmas trees, choke and kill manifolds, and high-pressure pipeline isolation. The FLS type designation represents a through-conduit, full-bore design that enables unobstructed flow, minimizes pressure drop across the valve, and allows for pipeline pigging operations without restriction. With a bore size of 4 1/16 inches and material class EE, this valve is purpose-built for critical service environments including sour gas applications where hydrogen sulfide resistance and long-term sealing integrity are paramount.

• Forged Steel Body andamp; Bonnet: The forged construction eliminates internal porosity and ensures superior mechanical properties, providing enhanced durability and resistance to pressure-induced deformation even under cyclic loading conditions.
• Metal-to-Metal Sealing System: Precision-lapped gate-to-seat and seat-to-body metal seals provide bubble-tight shutoff without relying on elastomeric components, ensuring reliable performance at elevated temperatures where soft seals would degrade.
• Bi-Directional Sealing Capability: The symmetrical gate and seat design enables effective sealing in both flow directions, eliminating installation orientation concerns and simplifying pipeline integration.
• Through-Conduit Full Bore Design: The full-bore configuration matches the pipeline internal diameter exactly, enabling unrestricted flow, pigging operations, and zero-turbulence fluid passage for pipeline maintenance compatibility.
• Inline Maintainability: All internal components including the gate and seat assembly can be serviced or replaced without removing the valve body from the pipeline, significantly reducing downtime and maintenance costs.
• Heavy-Duty Thrust Bearing: An oversized thrust bearing absorbs stem thrust loads during operation, reducing handwheel torque requirements and extending the service life of the stem and packing assembly.
• Stem Shear Pin Protection: A factory-calibrated shear pin in the stem connection protects internal components from catastrophic failure if the handwheel is subjected to excessive torque beyond rated limits.

The Forged Steel High Pressure Gate Valve FLS Type is deployed extensively across upstream oil and gas operations where high-pressure isolation is critical. Primary application environments include surface wellhead assemblies and Christmas trees for onshore and offshore production wells, choke and kill manifolds in drilling operations requiring rapid and reliable shutoff, high-pressure flowline isolation for gathering and transmission systems, and frac manifold setups where valves must endure frequent cycling and abrasive media exposure. The forged steel construction and metal-to-metal sealing make this valve particularly suitable for sour service environments containing hydrogen sulfide (H2S) and carbon dioxide (CO2), where NACE MR0175 / ISO 15156 compliance is mandatory. Additionally, the valve serves in gas injection and water injection wellhead systems, refinery high-pressure process lines, and chemical plant isolation applications where zero leakage and operational safety are paramount.

Each Forged Steel High Pressure Gate Valve undergoes rigorous quality control inspection prior to shipment, including hydrostatic shell testing, gas seat testing, and dimensional verification in accordance with API 6A requirements. Valves are shipped with flange protectors installed, stem protectors in place, and the gate in the fully open position to prevent seal surface damage during transit. Standard packaging consists of heavy-duty plywood crates with internal bracing and desiccant packs for moisture protection. All shipments include a comprehensive documentation package containing material test certificates (MTR), pressure test reports, API 6A compliance certificates, and an installation and maintenance manual. CCSC PETROLEUM EQUIPMENT CO.,LTD is committed to delivering API 6A certified gate valves that meet or exceed the most stringent industry requirements for safety, reliability, and long-term performance in high-pressure oilfield service.
