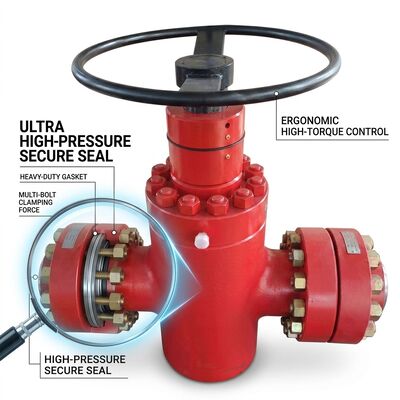

High Temperature Forged Steel Gate Valve F22 4 Inch 2500LB Pressure Seal Butt Weld Steam Service

High Temperature Forged Steel Gate Valve F22 4" 2500LB

Product Introduction

Engineered for the most demanding high-temperature service conditions, this forged steel gate valve features an ASTM A182 F22 (2.25Cr-1Mo) alloy steel body designed to maintain mechanical integrity at temperatures up to 593°C. The 4-inch Class 2500LB pressure seal construction is purpose-built for superheated steam lines in fossil fuel power plants, refinery hydrocracking units, and high-temperature hydrocarbon processing. The chromium-molybdenum alloy chemistry provides superior creep resistance and oxidation resistance compared to standard carbon steel, ensuring decades of reliable service in critical process loops.

Key Features & Characteristics

• F22 Chromium-Molybdenum Alloy Body: 2.25% Cr - 1% Mo alloy chemistry delivers exceptional creep strength and resistance to hydrogen attack at elevated temperatures, meeting NACE MR0175 requirements for sour service environments.
• Pressure Seal Bonnet with Graphite Gasket: Self-energizing seal design with flexible graphite/stainless steel spiral-wound gasket maintains leak-tight integrity through thermal cycling from ambient to 593°C.
• Full Stellite 6 Trim: Cobalt-based hardfacing on gate, seat rings, and backseat provides superior galling and erosion resistance, critical for maintaining seat tightness in high-temperature steam erosion conditions.
• Guided Disc Design: Precision-machined guide slots in the body and disc ensure smooth operation without chatter or vibration, even under high-velocity flow conditions.
• Extended Stuffing Box: Deep packing chamber with live-loading capability accommodates multiple graphite packing rings for enhanced stem sealing at extreme temperatures.
• Stress-Relieved Weld Preparation: All butt weld ends are post-weld heat treated (PWHT) to eliminate residual stresses, ensuring weld integrity during field installation.

Why Choose Us

• Specialized Alloy Steel Expertise: We maintain dedicated production lines for chromium-molybdenum alloy valves with controlled heat treatment processes per ASME Section IX welding qualifications.
• Complete NDE Package: Every valve receives 100% ultrasonic testing, magnetic particle inspection, and positive material identification (PMI) as standard, with full documentation provided.
• High-Temperature Cycle Testing: Our in-house testing facility performs thermal cycling tests from ambient to 600°C, validating seat tightness and packing performance before shipment.
• Global Project References: Our high-temperature valves are installed in major power plants and refineries across Asia, Middle East, and Africa.
• OEM & Custom Engineering: Capable of designing and manufacturing to specific project specifications including GA drawings, data sheets, and ITP documentation.

Technical Parameter Table

FAQ

Q: What is the difference between F22 and standard carbon steel for high temperature service?
A: F22 alloy steel contains 2.25% Chromium and 1% Molybdenum, providing significantly higher creep rupture strength and oxidation resistance at temperatures above 450°C. Carbon steel loses strength rapidly above 425°C, while F22 maintains structural integrity up to 593°C, making it essential for superheated steam and high-temperature hydrocarbon services.

Q: How do you ensure the valve remains leak-tight during thermal cycling?
A: Our pressure seal bonnet design with live-loaded graphite packing automatically compensates for thermal expansion and contraction. The Stellite 6 trim maintains dimensional stability across the temperature range. Each valve undergoes a thermal cycling test to verify sealing performance.

Q: Do you provide welding procedure specifications (WPS) for field installation?
A: Yes, we provide detailed WPS and PQR documentation for butt weld end preparation, including preheat requirements, interpass temperature controls, and post-weld heat treatment parameters for F22 material.
