Product Details:
|
| Model: | ZQ203. | Processing Type: | Forging |
|---|---|---|---|
| Application: | Well Drilling | Advantage: | High-efficiency |
| Color: | Red | Material: | Carbon Steel |
| High Light: | casing power tong,drill pipe power tong |
||

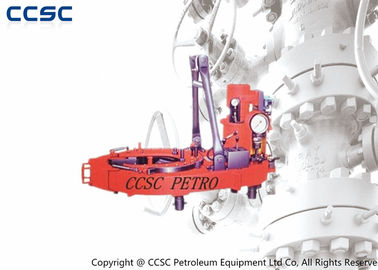

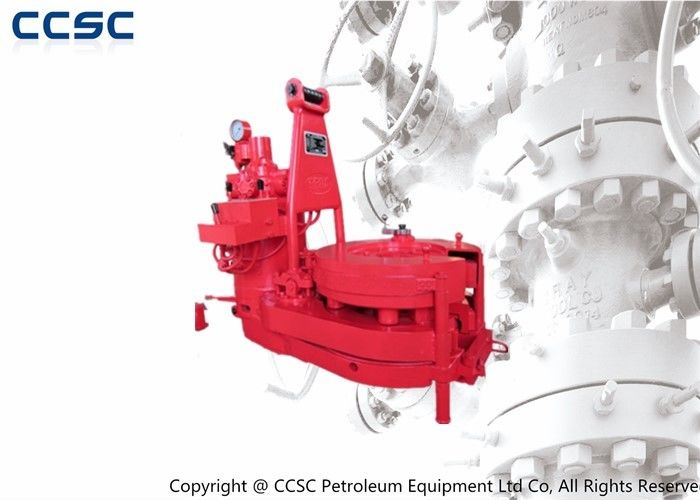

Hydraulic drill pipe tong - drill pipe power tong is a wellhead handling tool which is using for quick and safe making up and breaking out of drill pipes and drill collars,they are strictly designed and manufactured in according with API 7K.
| Model | Applicable pipe diameter | Max Torque | Tong Head (rpm) | Hydraulic | Shifting Distance | Rise and fall distance | ||||
| mm | inch | KN.M | High Gear | Lower Gear |
Pressure (Mpa) |
Flow (L/min) | mm | mm | ||
| ZQ203-100 | 121-203 | 3 1/2 coupling | 8 body | 100 | 40 | 2.7 | 16.6 | 114 | 1500 | / |
| ZQ203-100II | 121-203 | 3 1/2 coupling | 8 body | 100 | 40 | 2.7 | 16.6 | 114 | 1500 | 0-430 |
| ZQ203-100III | 121-203 | 3 1/2 coupling | 8 body | 100 | 40 | 2.7 | 16.6 | 114 | / | 0-800 |
| ZQ203-125 | 127-203 | 3 1/2 coupling | 8 body | 125 | 40 | 2.7 | 20 | 114 | 1500 | / |
| ZQ203-125II | 127-203 | 3 1/2 coupling | 8 body | 125 | 40 | 2.7 | 20 | 114 | 1500 | 0-430 |
| ZQ203-125III | 127-203 | 3 1/2 coupling | 8 body | 125 | 40 | 2.7 | 20 | 114 | / | 0-800 |
| ZQ162-50 | 85-162 | 2 3/8 coupling | 5 body | 50 | 60 | 4.1 | 16 | 120 | 1000 | / |
| ZQ162-50II | 85-162 | 2 3/8 coupling | 5 body | 50 | 60 | 4.1 | 16 | 120 | 1000 | 0-440 |
| ZQ127-25 | 65-127 | 2 3/8 coupling | 3 1/2 body | 25 | 65 | 10.5 | 12 | 180 | 1000 | / |
