Product Details:
|
| Model: | TQ178, TQ340, TQ356, TQ508 | Machine Type: | Drilling Tool |
|---|---|---|---|
| Material: | Carbon Steel | Application: | Oil |
| Processing Type: | Casting | Color: | Red |
| High Light: | casing power tong,hydraulic casing tongs |
||

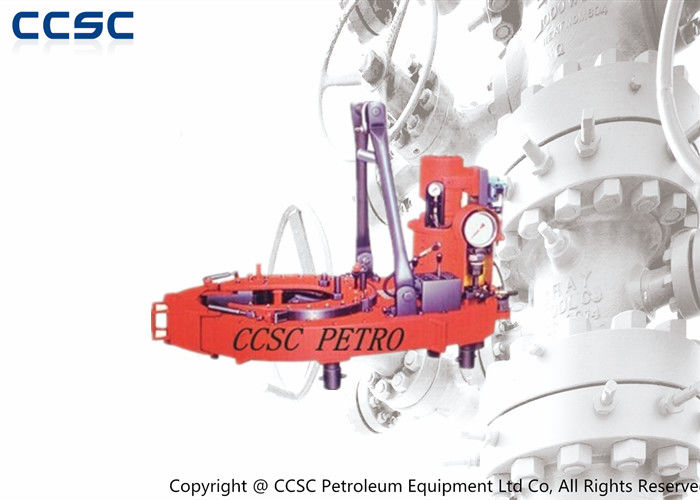

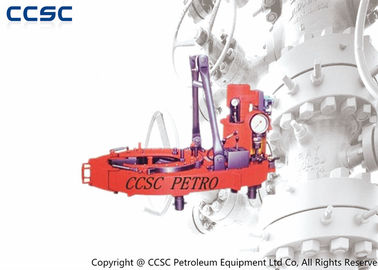

Hydraulic casing tong - casing power tong is a wellhead handling tool which is using for quick and safe making up and breaking out of casing,they are strictly designed and manufactured in according with API 7K,size ranges available to meet your casing size.
| Model | Applicable pipe diameter | Max Torque (KN.M) | Hydraulic | Tong Head Speed (rpm) | ||||||
| mm | inch | high gear | mid gear | low gear |
Pressure (Mpa) |
Flow (L/min) | high gear | mid gear | low gear | |
| TQ178-16 | 101.6-178 | 4-7 | 2.4-3 | / | 14.5-17.5 | 18 | 110-160 | 54-97 | / | 9-13.1 |
| TQ178-16Y | 101.6-178 | 4-7 | 2.4-3 | / | 15-18 | 18 | 110-160 | 54-79 | / | 9-13 |
| TQ340-20A | 101.6-340 | 4-13 3/8 | 3.7 | / | 15-20 | 16 | 110-160 | 50-80 | / | 6-14 |
| TQ340-35 | 114.3-340 | 4 1/2-13 3/8 | 2.5-3 | 6.0-7.5 | 32-40 | 18 | 110-160 | 60-86 | 21-30 | 2.6-5.3 |
| TQ340-35A | 114.3-340 | 4-13 3/8 | 4.0-5.0 | / | 27-30 | 18 | 110-160 | 80-98 | / | 12-16 |
| TQ340-35Y | 114.3-340 | 4 1/2-13 3/8 | 4.0-5.6 | / | 26-35.2 | 21 | 110-170 | 57-95 | / | 9-15 |
| TQ340-50 | 114.3-340 | 5 1/2-13 3/8 | 3.4-4.5 | 11 | 44-56 | 17.2 | 110-200 | 52-75 | 27.4 | 4.2-6 |
| TQ356-55 | 114.3-356 | 4 1/2-14 | 3.4-4.5 | / | 45-57.4 | 16.6 | 110-160 | 52-76 | / | 3.9-5.6 |
| TQ508-70Y | 244.5-508 | 9 5/8-20 | 8.4-10.7 | / | 48.9-70.5 | 20 | 110-170 | 26-43.6 | / | 4-6.6 |
