Hydraulic Drill Pipe Power Tong , High Performance Casing Power Tong

Hydraulic Drill Pipe Power Tong , High Performance Casing Power Tong
Hydraulic Drill Pipe Power Tong , High Performance Casing Power Tong Hydraulic Drill Pipe Power Tong , High Performance Casing Power Tong

Large Image :  Hydraulic Drill Pipe Power Tong , High Performance Casing Power Tong

Product Details:
Place of Origin: China
Brand Name: CCSC
Certification: API 7K
Model Number: Hydraulic drill pipe tong
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 30-40days
Payment Terms: T/T

Hydraulic Drill Pipe Power Tong , High Performance Casing Power Tong

Description
Model: ZQ127, ZQ162, ZQ203. Processing Type: Forging
Application: Well Drilling Advantage: High-efficiency
Color: Red Material: Carbon Steel
High Light:

hydraulic casing tongs

,

drill pipe power tong

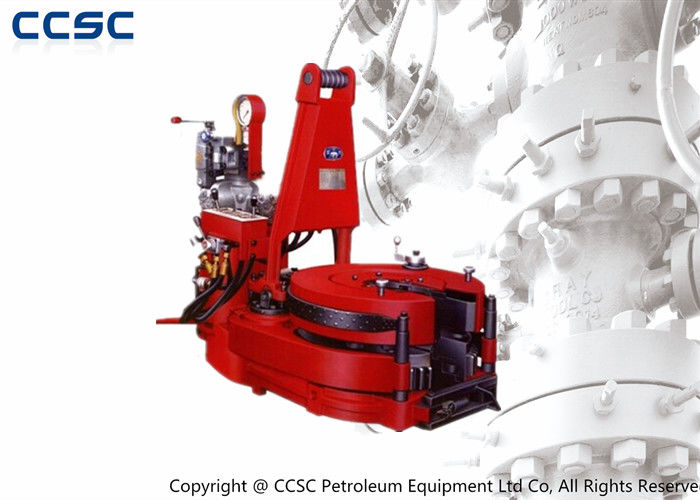

Hydraulic drill pipe tong - Drill Pipe Power Tong



Hydraulic drill pipe tong - drill pipe power tong is a wellhead handling tool which is using for quick and safe making up and breaking out of drill pipes and drill collars,they are strictly designed and manufactured in according with API 7K.

hydraulic drill pipe tong

Available Specication

Model Applicable pipe diameter Max Torque Tong Head (rpm) Hydraulic Shifting Distance Rise and fall distance
mm inch KN.M High Gear Lower Gear

Pressure

(Mpa)

Flow (L/min) mm mm
ZQ203-100 121-203 3 1/2 coupling 8 body 100 40 2.7 16.6 114 1500 /
ZQ203-100II 121-203 3 1/2 coupling 8 body 100 40 2.7 16.6 114 1500 0-430
ZQ203-100III 121-203 3 1/2 coupling 8 body 100 40 2.7 16.6 114 / 0-800
ZQ203-125 127-203 3 1/2 coupling 8 body 125 40 2.7 20 114 1500 /
ZQ203-125II 127-203 3 1/2 coupling 8 body 125 40 2.7 20 114 1500 0-430
ZQ203-125III 127-203 3 1/2 coupling 8 body 125 40 2.7 20 114 / 0-800
ZQ162-50 85-162 2 3/8 coupling 5 body 50 60 4.1 16 120 1000 /
ZQ162-50II 85-162 2 3/8 coupling 5 body 50 60 4.1 16 120 1000 0-440
ZQ127-25 65-127 2 3/8 coupling 3 1/2 body 25 65 10.5 12 180 1000 /
