API 16C Approved High Pressure Pipe Fittings Hose Loop Alloy Steel Material

API 16C Approved High Pressure Pipe Fittings Hose Loop Alloy Steel Material
API 16C Approved High Pressure Pipe Fittings Hose Loop Alloy Steel Material API 16C Approved High Pressure Pipe Fittings Hose Loop Alloy Steel Material API 16C Approved High Pressure Pipe Fittings Hose Loop Alloy Steel Material

Large Image :  API 16C Approved High Pressure Pipe Fittings Hose Loop Alloy Steel Material

Product Details:
Place of Origin: China
Brand Name: CCSC
Certification: API 16C
Model Number: Hose Loop
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 30-40days
Payment Terms: T/T

API 16C Approved High Pressure Pipe Fittings Hose Loop Alloy Steel Material

Description
Size: 1"- 4" End Connection: Weco Hammer Union, Flange, Thread
Working Pressure: 6000 - 20,000PSI Service: Oil, Gas, H2S Service
Processing Type: Forging Material: Alloy Steel
Temperature: -29 - 121 Centigree Color: All Color
High Light:

pipe joints and fittings

,

swivel joint pipe fittings

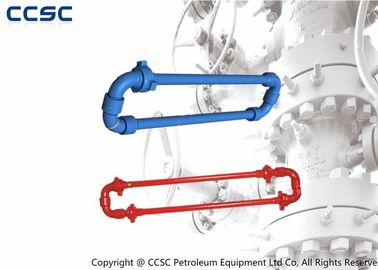

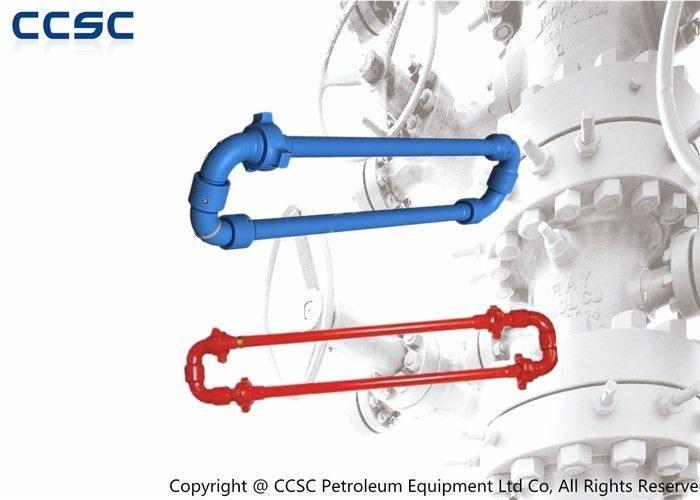

API 16C style 10, 50 Hose Loop-Cementing and Circulating Hose Loops

Hose loops - Cementing and Circulating Hose Loop includes long radius and short radius hose loop with size 1",1 1/2",2"3" and 4" working pressure ranging from 6,000psi - 20,000psi.

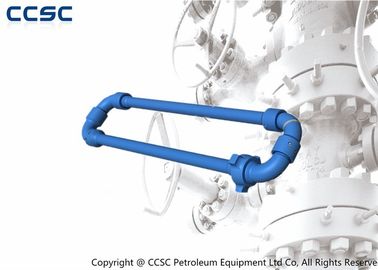

long radius hose loop

Hose loops are used as discharge line,fluid delivery line,well testing line,cement slurry line and other delivery lines during high pressure operations, they are composed of swivel joints and straight pipe assy.,which are easy for folding,transportation and storage,featuring flexibility,shock-resistance and vibration resistance.

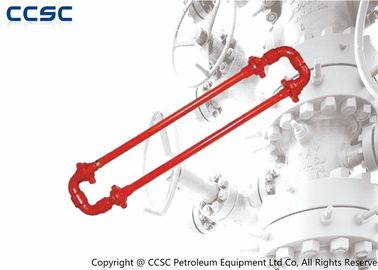

short radius hose loops

Application
● Oil and Gas lines
● High-pressure well servicing lines
● Acidizing,fracturing lines and testing lines
● Crude Oil and Sour Gas, Mud.
● Manifolds and Pipelines
● Circulating lines and other well service
● Cementing and sand stimulation applications.
● Production and flushing lines,



Fetures
●Low torque operation at all pressures
● Cementing and circulation hoses provide flexibility, absorb shock and vibration, and maximize flow characteristics.
●The end connections ensure fast, pressure-tight make-up and break-out without threading, welding, or special connections.
●Permits fast, easy service at the job site. The hoses fold up easy and quickly for transportation and storage.


Note:Customer's inquiry information shall include size,working pressure,lenght,connection type,and working condition(H2S).
