API 16C Approved Pipe Joints And Fittings , High Pressure Integral Pup Joint

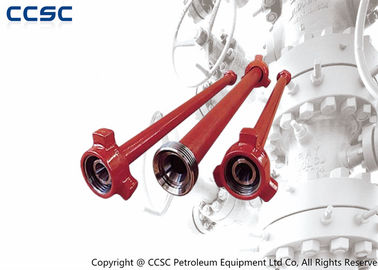

Large Image : API 16C Approved Pipe Joints And Fittings , High Pressure Integral Pup Joint

Product Details:

Place of Origin:	China
Brand Name:	CCSC
Certification:	API 16C
Model Number:	FMC Chiksan Pup Joint

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Plywood box
Delivery Time:	30-40days
Payment Terms:	T/T

Contact Now

API 16C Approved Pipe Joints And Fittings , High Pressure Integral Pup Joint

Description

Size:	1"- 4"	End Connection:	Weco Hammer Union, Flange, Thread
Working Pressure:	3000 - 15,000PSI	Service:	Oil, Gas, H2S Service
Processing Type:	Forging	Material:	Alloy Steel
Temperature:	-29 - 121 Centigree	Color:	All Color
Highlight:	pipe joints and fittings , swivel joint pipe fittings

API 16C high pressure FMC Chiksan Pup Joint/Integral Pup Joint for Iron Pipe Fittings

Pup Joint (compatible with FMC Chiksan Pup Joint) is a pipe line with thread, flange or union connectors on both ends, we can provide various pup joint for high,low pressure and temperature and H2S environment, with size range from 2" - 4" and working pressure range from 3,000psi - 15,000psi. all of them are strictly desined, manufactured and tested according to API 16C, Q1 and NACE 0175, both pressure thread seal straight pipe and non-pressure thread seal pup joint are available.

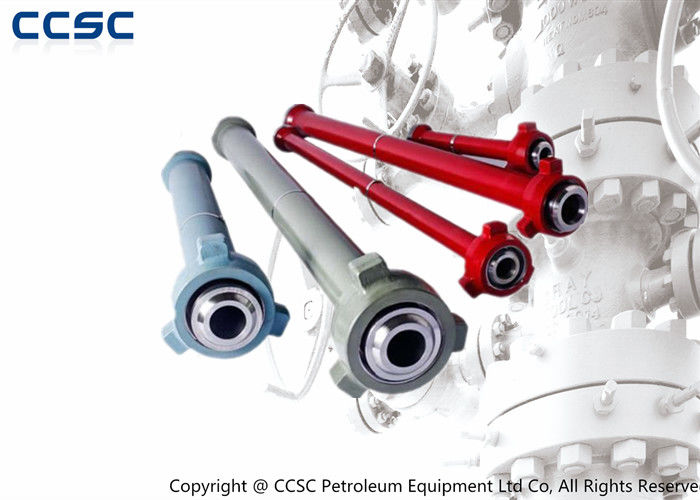

API 16C Approved Pipe Joints And Fittings , High Pressure Integral Pup Joint 0

Pressure thread seal pup joint
Non-pressure thread seal pup joint

CCSC Pup joints feature:

1. Integral pup joints made from one forged raw pipe.
2. Flanged end is also available for high pressure pipeline.
3. ACME thread is adopted in Weco wing union.
4. Standard service is used up to 15,000psi and tested at 22,500psi.
5. H2S service is used up to 10,000psi and tested at 15,000ps.

Note:Customer's inquiry information shall include size,working pressure,lenght,connection type,and working condition(H2S).
API 16C Approved Pipe Joints And Fittings , High Pressure Integral Pup Joint 1
