Forged Welded Steel Pipe Fittings 1-4 Inch Weco Wing Union

Forged Welded Steel Pipe Fittings 1-4 Inch Weco Wing Union
Forged Welded Steel Pipe Fittings 1-4 Inch Weco Wing Union Forged Welded Steel Pipe Fittings 1-4 Inch Weco Wing Union Forged Welded Steel Pipe Fittings 1-4 Inch Weco Wing Union Forged Welded Steel Pipe Fittings 1-4 Inch Weco Wing Union Forged Welded Steel Pipe Fittings 1-4 Inch Weco Wing Union Forged Welded Steel Pipe Fittings 1-4 Inch Weco Wing Union

Large Image :  Forged Welded Steel Pipe Fittings 1-4 Inch Weco Wing Union

Product Details:
Place of Origin: China
Brand Name: CCSC
Certification: API
Model Number: Weco Hammer Union
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 30-40days
Payment Terms: T/T

Forged Welded Steel Pipe Fittings 1-4 Inch Weco Wing Union

Description
Bore Size: 1-4 Inch Working Pressure: 2,000psi – 20,000psi
Connection Type: Threaded End, Butt Weld End Processing Type: Forging
Temperature: -29 - 121 Centigree Color: All Color
High Light:

pipe joints and fittings

,

swivel joint pipe fittings

Forged high pressure Weco Hammer Union/Wing Union for Iron Pipe Fittings

Weco Hammer Union (Wing union) manufactured by CCSC is based on the introduced technologies from FMC, the hammer union components are interchangable with FMC WECO on the same size and figure.



Our hammer unions (wing unions) are forged by the high quality alloy steel (such as AISI 4130 75K). All processes including forging, machining, and heat treatment are strictly controlled and full trackable in according with API 6A, API 16c and Q1, as well as NACE-MR-01-75 (sour gas service)


weco hammer union

Our hammer unions (wing unions) are available in different end connections, API line pipe thread end and Butt weld end, clients need to specify the schedule of pipe while ordering.



Application:

  • 1. Oil and Gas pipelines,
  • 2. Cementing, fracturing,Manifolds and Pipelines,acidizing, testing
  • 3. Crude Oil and Sour Gas,Mud,
  • 4. Water Flood Lines,
  • 5. choke-and-kill lines.


Avalaible Specication

Bore Size 1-4 inch
Working Pressure 2,000psi – 20,000psi
Connection type Threaded end, butt weld end
Figure No. Fig100, Fig200/206, Fig400, Fig602, Fig1002, Fig1502, Fig2202

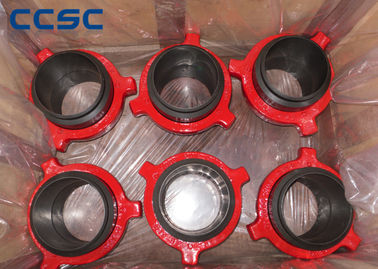

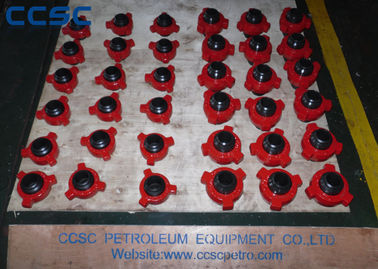

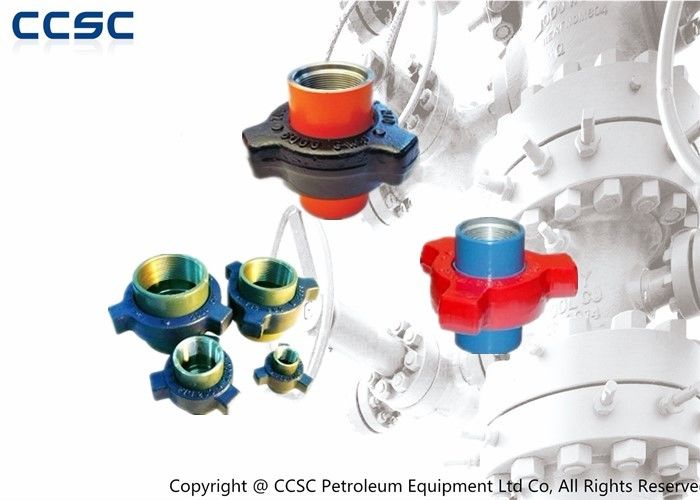

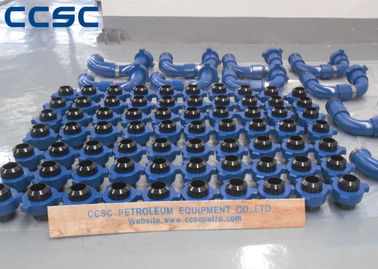

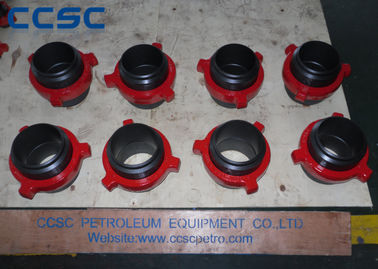

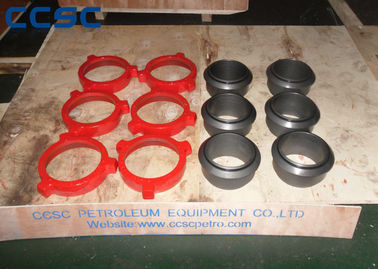

Weco hammer union picture
