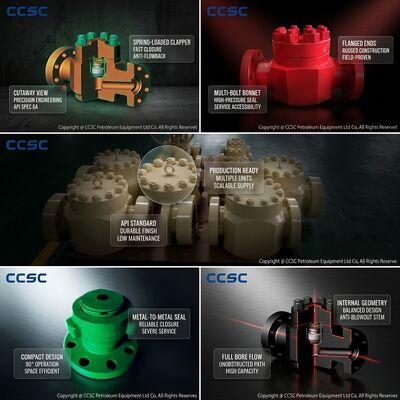

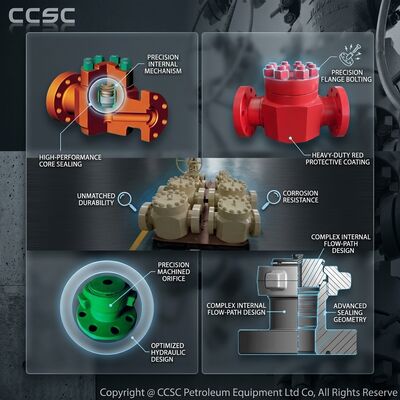

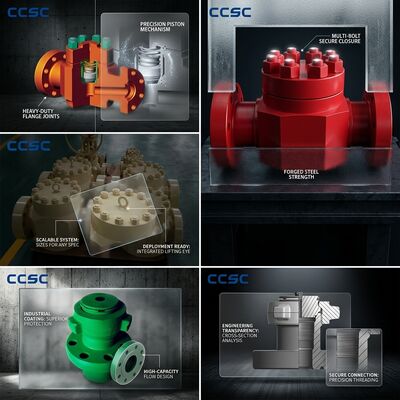

Hammer Union Inline Check Valve API 6A Fig1502 End Connection 15000psi Forged Steel for Fracturing Operations

The Hammer Union Inline Check Valve with Fig1502 end connections is purpose-engineered for the high-intensity demands of hydraulic fracturing, cementing, and well testing operations where rapid deployment, absolute backflow prevention, and frequent reconfiguration define the operating environment. Unlike flanged check valves requiring bolt tensioning, gasket replacement, and crane-assisted handling for every connection and disconnection cycle, the hammer union design enables tool-free make-up and break-out using standard hammer wrenches, reducing rig-up time for a complete high-pressure pumping spread from hours to minutes. This API 6A certified check valve features a forged alloy steel body rated for 15,000psi continuous working pressure, a spring-assisted flapper closure mechanism that prevents reverse flow within milliseconds of pump shutdown, and a top entry bonnet configuration that enables complete internal component service without removing the valve body from the hammer union piping network. The Fig1502 hammer union end connections on both inlet and outlet ports utilize the industry-standard wing nut andAcme thread design with replaceable lip seals, providing a self-energizing metal-to-metal pressure seal that increases in effectiveness as system pressure rises, a fundamental safety advantage in ultra-high-pressure fracturing operations where connection integrity directly impacts personnel protection and environmental containment.

• Fig1502 Hammer Union Quick Connections: Industry-standard hammer union end connections with wing nut fasteners and replaceable union seals enable rapid make-up, pressure testing, and break-out without flange bolting, welding, or specialized torque equipment, dramatically reducing non-productive time during fracturing spread rig-up and rig-down.
• Forged Alloy Steel High-Pressure Body: One-piece forged body construction from vacuum-degassed alloy steel eliminates the porosity, inclusions, and structural inconsistencies inherent in cast valve bodies, providing the metallurgical integrity essential for cyclic pressure service at 15,000psi with typical pumping rates exceeding 100 barrels per minute.
• Millisecond Flapper Closure Response: The torsion spring-loaded flapper begins closing the instant forward flow ceases or attempts to reverse, achieving full metal-to-metal seat contact within approximately 50 milliseconds, effectively preventing the water hammer and reverse rotation damage that destroys unprotected centrifugal pumps and positive displacement pump fluid ends.
• Full Interchangeability with OEM Designs: Engineered to identical envelope dimensions, pressure ratings, and end connection specifications as leading OEM hammer union check valve models, enabling direct replacement without piping modifications, adapter spools, or requalification of existing high-pressure flowline assemblies.
• Top Entry Service Access: Removal of the top bonnet retainer segment and body cap provides complete access to the flapper assembly, hinge mechanism, seat ring, and all internal sealing surfaces for inspection, cleaning, and component replacement while the valve body remains securely connected to the hammer union piping system.
• Proppant-Resistant Flow Path Design: The full-bore through-conduit flow path with smooth internal contours eliminates the pockets, grooves, and stagnation zones where fracturing sand and ceramic proppant accumulate, preventing the buildup that causes flapper seating interference and check valve leakage in conventional designs.
• Universal Directional Installation Marking: A raised flow direction arrow forged integrally into the valve body provides permanent, tamper-proof installation guidance visible under all lighting conditions and unaffected by paint, coatings, corrosion, or surface abrasion over years of field service.

The Hammer Union Inline Check Valve with Fig1502 connections is the standard backflow prevention device for the global high-pressure pumping services industry, deployed wherever multiple high-horsepower pumps discharge into a common manifold and pump isolation integrity is non-negotiable. Primary deployment scenarios include hydraulic fracturing operations where fleets of 2,500 to 5,000 horsepower fracturing pumps operate in parallel against formation breakdown pressures exceeding 10,000psi, with each pump protected by a dedicated check valve at its discharge connection to the frac manifold to prevent catastrophic reverse flow if a pump fluid end fails or a power end seizes during the high-pressure stimulation treatment. Additional critical applications include cementing unit high-pressure discharge lines where backflow of cement slurry into the pump would result in solidified cement within the fluid end requiring complete pump disassembly, well testing surface equipment packages where produced hydrocarbons under formation pressure must be positively prevented from flowing back toward the test separator and flare system, and coil tubing string pressure isolation where check valves in the bottom hole assembly prevent wellbore fluids from entering the coil under reverse pressure conditions. The hammer union design is specifically valued in mobile pumping service operations where equipment is continuously transported between well locations and the speed and simplicity of hammer union make-up versus flanged connections directly impacts the number of fracturing stages that can be completed per day, a key economic driver in unconventional resource development programs.

Each Hammer Union Inline Check Valve is manufactured under an ISO 9001 certified quality management system and subjected to a comprehensive pressure testing and inspection program exceeding minimum API 6A requirements. Testing includes hydrostatic shell pressure testing at 22,500psi with zero leakage acceptance criteria, gas seat leakage testing at both low-pressure and full-rated differential pressure using nitrogen test medium, and functional cycling verification across ten complete open-close cycles with seat leakage retest. All hammer union sealing surfaces undergo dimensional inspection with certified gauges, and thread profiles are verified with calibrated ring and plug gauges. External surfaces receive a protective phosphate coating with rust-preventive oil film. Union connections are fitted with protective thread caps, metal seal surface protectors, and bore plugs prior to crating. Export packaging utilizes ISPM 15 certified heavy-duty plywood crates with custom-molded polyethylene foam inserts and industrial desiccant packs. The complete documentation package includes material test certificates with full chemical analysis and mechanical property reports, forging certification with heat lot traceability, non-destructive examination records including ultrasonic and magnetic particle inspection reports, hydrostatic and gas test charts with electronic data logging, API 6A monogram certificates, and detailed installation torque specifications for hammer union connections. CCSC PETROLEUM EQUIPMENT CO.,LTD is dedicated to providing hammer union check valves that deliver consistent, reliable backflow protection in the most demanding high-pressure pumping applications across the global oilfield services industry.
