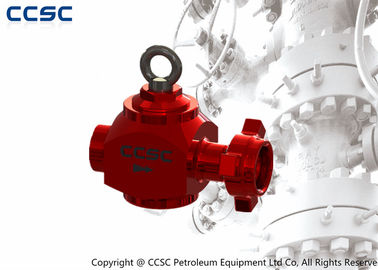

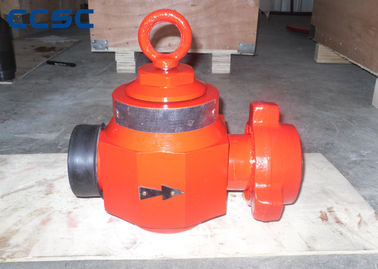

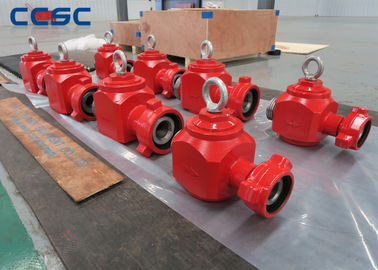

Hydraulic Inline Check Valve Top - Entry Type Working Pressure 6,000-15,000psi

Hydraulic Inline Check Valve Top - Entry Type Working Pressure 6,000-15,000psi
Hydraulic Inline Check Valve Top - Entry Type Working Pressure 6,000-15,000psi Hydraulic Inline Check Valve Top - Entry Type Working Pressure 6,000-15,000psi Hydraulic Inline Check Valve Top - Entry Type Working Pressure 6,000-15,000psi

Large Image :  Hydraulic Inline Check Valve Top - Entry Type Working Pressure 6,000-15,000psi

Product Details:
Place of Origin: China
Brand Name: CCSC
Certification: API 6A
Model Number: Top-entry Check Valve with 2 inch and 3 inch
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 30-40days
Payment Terms: T/T

Hydraulic Inline Check Valve Top - Entry Type Working Pressure 6,000-15,000psi

Description
Size: 2" , 3" Working Pressure: 6,000-15,000psi
Flow Condition: H2S, Standard End Connection: Hammer Union
Processing Type: Forging Color: All Color
High Light:

cast flow check valve

,

top entry check valve

API 6A high pressure Top-entry Check Valve with 2 inch and 3 inch for Inline Check Valve



Top-entry check valve provided by CCSC is forged by hight strength alloy steel,it's used to stop the return flow from high pressure piping,our to-entry check valve are available in size 2 inch and 3 inch,15,000psi working pressure,with fig1502 hammer union end connection.

CCSC top entry check valve is designed to be compatible with FMC Weco top entry check valve based on technology imported from FMC. To ensure the quality, our top entry check valves are forged by the high quality alloy steel. All processes including forging, machine, and heat treatment are strictly controlled and full trackable in according with API 6A, API 16c and Q1, as well as NACE-MR-01-75 (sour gas service)


Top entry check valve

Features
• Forged Body
• Simple structure,the internal parts can be inline changed
• With clear flow direction inditification mark.

Top Entry Check Valve Compostion

top entry check valve composition
  • 1. Body
  • 2. Gate
  • 3. Retainer pivot pin
  • 4. Alignment pin
  • 5. Pivot pin
  • 6. Body Cap
  • 7. Detachable nut union
  • 8. Retainer segment
  • 9. Retainer ring
  • 10. Lifting boit
  • 11 - 14. Oring
  • 15. Seat ring
  • 16. Seat
Available Specification
Nomal Size, in Working Pressure, psi End Connection Flow Condition
2 15,000 Fig1502 M X F Standard
3 15,000 Fig1502 F X M Standard
