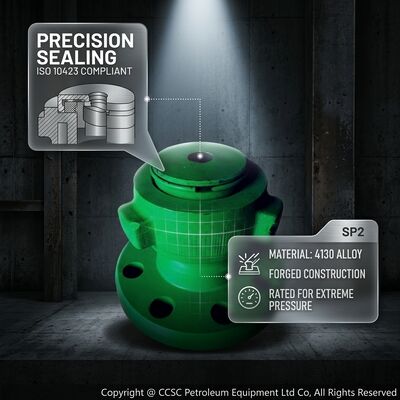

Flapper Style High Pressure Check Valve API 6A 15000psi Forged Body Internal Access Design for Drilling

The Flapper Style High Pressure Check Valve represents a critical safety component in drilling manifold and well control systems where instantaneous backflow prevention can mean the difference between controlled operations and catastrophic equipment failure. This API 6A certified check valve employs a spring-assisted flapper closure mechanism that reacts to flow cessation or reversal within milliseconds, slamming the flapper against the precision-machined seat ring before reverse flow can develop damaging velocity or pressure surges. Rated for continuous service at 15,000psi working pressure with hydrostatic test verification at 22,500psi, this valve is constructed from forged alloy steel selected for its exceptional combination of yield strength, fracture toughness, and resistance to sulfide stress cracking in NACE MR0175 compliant sour service environments. The top entry body configuration enables complete internal inspection and component replacement including the flapper plate, hinge pin assembly, seat ring, and all sealing elements through the upper bonnet opening while the valve body remains rigidly connected to the piping system via Fig1502 hammer union connections, a design philosophy that transforms what would otherwise be a multi-hour maintenance operation into a procedure measured in minutes.

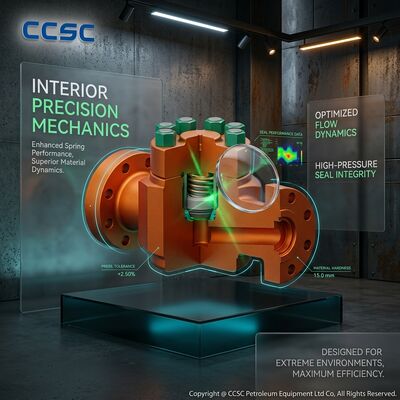

• Spring-Assisted Flapper Closure: The torsion spring-loaded flapper mechanism provides positive sealing force independent of fluid pressure, ensuring reliable closure even at near-zero differential pressures where gravity-only flapper designs may fail to seat properly against the sealing surface.
• Forged Alloy Steel Body andamp; Bonnet: Manufactured from premium-grade forged alloy steel with full heat treatment documentation and Charpy impact testing at design minimum temperature, providing the structural integrity demanded by high-pressure drilling manifold service conditions.
• Interchangeable with FMC Weco Design: Engineered as a direct dimensional and performance interchange with established OEM flapper check valve models, enabling seamless integration into existing hammer union piping systems without adapter spools or field modifications.

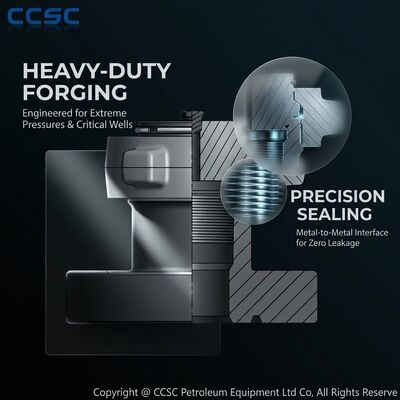

• Metal-to-Metal Seat Contact: The flapper-to-seat sealing interface utilizes precision-lapped metal surfaces that maintain integrity at elevated temperatures where elastomeric seals would degrade, with optional soft-seat inserts available for applications demanding bubble-tight shutoff at low differential pressures.
• Integral Flow Arrow Marking: A raised directional arrow cast directly into the valve body forging provides permanent, unambiguous installation orientation guidance that cannot be removed, painted over, or misread under field conditions with limited visibility.
• Full-Port Flow Path: The internal flow passage diameter matches the connecting pipe bore throughout the valve body, eliminating flow restrictions, turbulence generation, and erosion-prone velocity zones that accelerate component wear in abrasive fluid service.
• Field-Replaceable Internal Components: All wear components including the flapper assembly, seat ring, hinge pin, retainer pivot pin, and sealing O-rings are designed as individually replaceable items, stocked as spare parts kits for rapid field refurbishment without specialized tooling.

The Flapper Style High Pressure Check Valve is strategically deployed across the full spectrum of high-pressure oilfield pumping and well control operations. Primary application scenarios include drilling manifold discharge lines where multiple mud pumps discharge into a common standpipe manifold and a single pump shutdown must instantly isolate the idle pump from the pressurized common header to prevent reverse rotation damage, cementing unit high-pressure discharge lines ensuring that cement slurry flows exclusively in the forward direction during primary casing cementing, squeeze cementing, and plug cementing operations, choke and kill manifold systems on drilling rigs where check valves in the kill line prevent uncontrolled formation fluid influx through the kill circuit during well control events, and high-pressure well stimulation pumping spreads during hydraulic fracturing and acidizing operations. The flapper style mechanism is particularly well-suited to applications involving fluids with suspended solids or proppants, as the flapper's rotational opening motion and full-port flow path minimize the crevices and dead zones where particulate matter can accumulate and interfere with valve seating, a common failure mode in ball-type and lift-type check valves exposed to proppant-laden fracturing fluids. This check valve is also extensively utilized in mud gas separator vent lines, flare system backflow protection, and produced water reinjection pump discharge applications where reliable one-way flow control directly supports environmental compliance and operational safety objectives.

Every Flapper Style High Pressure Check Valve is subjected to a rigorous quality verification program exceeding minimum API 6A inspection requirements. Each valve undergoes hydrostatic shell integrity testing at 1.5 times rated working pressure, low-pressure gas seat testing to confirm flapper-to-seat sealing at near-zero differential, high-pressure gas seat testing at full rated differential, and functional cycling verification to confirm consistent flapper operation across ten complete open-close cycles. External surfaces are protected with a corrosion-inhibiting preservative coating, and all threaded and sealing surfaces receive protective caps and plugs. Export packaging utilizes ISPM 15 certified fumigated plywood crates with custom-cut foam inserts, desiccant packs, and humidity indicator cards. Complete documentation accompanies each shipment including material test reports with full chemical and mechanical property traceability, forging certification, heat treatment records, non-destructive examination reports, hydrostatic and gas test charts, and API 6A product compliance certificates. CCSC PETROLEUM EQUIPMENT CO.,LTD is committed to manufacturing check valves that provide dependable backflow protection in the most demanding high-pressure oilfield pumping and well control applications worldwide.
