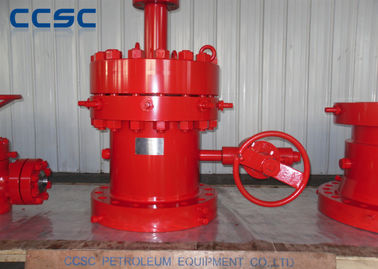

Stainless Steel Christmas Tree Equipment Forged Tubing Head And Tubing Spool

Stainless Steel Christmas Tree Equipment Forged Tubing Head And Tubing Spool
Stainless Steel Christmas Tree Equipment Forged Tubing Head And Tubing Spool Stainless Steel Christmas Tree Equipment Forged Tubing Head And Tubing Spool

Large Image :  Stainless Steel Christmas Tree Equipment Forged Tubing Head And Tubing Spool

Product Details:
Place of Origin: China
Brand Name: CCSC
Certification: API 6A
Model Number: Customizable
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 30-40days
Payment Terms: T/T

Stainless Steel Christmas Tree Equipment Forged Tubing Head And Tubing Spool

Description
Working Pressure: 2,000psi-20,000psi Medium: Oil,natural Gas,mud
Working Temperature: -46℃-121℃(L-U) Material Class: AA-HH
Specification Class: PSL1-PSL4 Performance Class: PR1-PR2
High Light:

wellhead casing hanger

,

oilfield christmas tree

Forged Tubing Head and Tubing Spool with API 6A suitable for Wellhead Christmas Tree



Tubing head is a body with two flange that can supports the tubing string on a oilwell, seals off the pressure between the casing and tubing annulus, and connect with tubing adapter on the top.

Tubing Head &tubing spool are a straight bore bowl with 45° landing shoulder design which avoids damage to sealing areas by drilling tools, and provides wedging of the tubing hangers, bowl protectors and test plugs. the secondary seal for the last casing pipe can be an integrated "OO" seal type or the plastic injection type, but also accepts reducer bushings "4-O" and "PE" (Pressure Energized).The upper flange is supplied with lockdown screws for packoff tubing hanger retention. The lower flange includes a grease fitting and orifice for testing of the secondary seal.

Tubing Head provided by CCSC can used for single completions and model of dual completions.

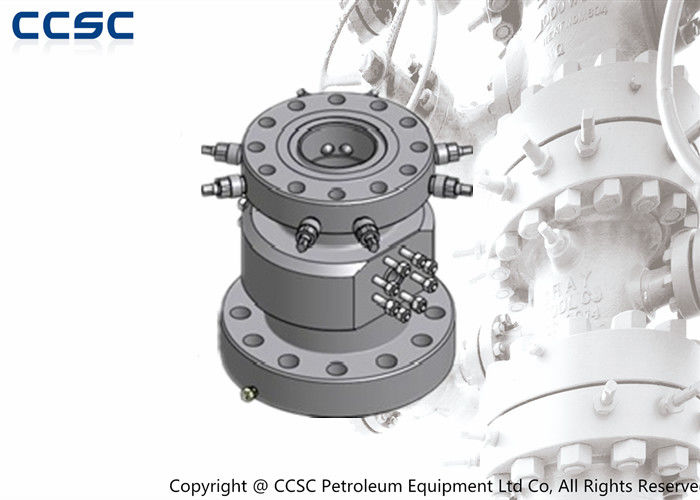

tubing head drawing

Feature:

  • 1. Versatile straight-bore design,Uses a 45° landing shoulder can safety support maximum loads.
  • 2. Bodies can be made from materials suitable for many severe service environments.
  • 3. Two different types of outlets: line pipe outlets and flanged padded (studded) outlets.
