CCSC Frac Wellhead Components Ball Injector With High Performance / Stability

CCSC Frac Wellhead Components Ball Injector With High Performance / Stability
CCSC Frac Wellhead Components Ball Injector With High Performance / Stability CCSC Frac Wellhead Components Ball Injector With High Performance / Stability

Large Image :  CCSC Frac Wellhead Components Ball Injector With High Performance / Stability

Product Details:
Place of Origin: China
Brand Name: CCSC
Certification: API
Model Number: Ball injector
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 40-50days
Payment Terms: T/T

CCSC Frac Wellhead Components Ball Injector With High Performance / Stability

Description
Bore Size: Φ16~Φ22 (Customizable) Number Of Balls: 379 Max.(Customizable)
Injection Pressure: 8,500PSI Working Pressure: 15,000PSI
High Light:

oil wellhead christmas tree

,

choke valve wellhead

Ball injector - Ball dropper for frac wellhead

Ball Injector – Ball dropper is ball drop tool which is often used on acidizing and fracturing application, for engaging and or activating mechanisms in down hole tools, our ball injector& ball launcher is reliable and high efficient tool during pump the frac balls into the frac stream

We have rich experience on ball dropper solutions, there are some different structure for the customer to choose as below

ball injector

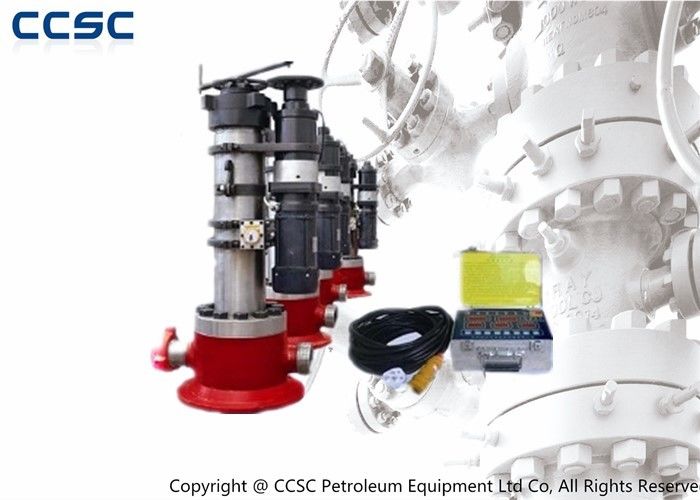

Model A: Conventional Fracturing ball injector

This model A ball injector can be used for both remote control by electric control box and manual operation by workers. During the operation, the same size balls are installed on the system, it can inject many balls with same size one time according to the need.

Bore Size Number of Balls Injection Pressure Working Pressure
Φ16~Φ22 (Customizable) 379 Max.(Customizable) 8,500PSI 15,000PSI


ball dropper

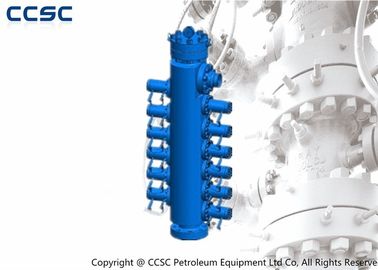

Model B: Staged fracturing ball injector - dropper

This model B ball injector/ball dropper is a kind of ball drop tool which is usually used for staged fracturing service. Our ball injector ball dropper is installed on the top of the frac head with 12 balls capacity and pressure rating up to 15000 psi.

Nominal size API SPEC.6A ,4-1/16”15000 PSI
Ball size Max.Φ95.25 mm, Min.Φ38.1 mm, Total 12 pcs
System flow >4 m³/Min
Driving Mode Hydraulic driven(25Mpa)
Outlet connection 4-1/16”15000 PSIx3”1502 female Union
