65/64" -128/64" Choke Valve Parts Tungsten Carbide Positive Choke Bean

65/64" -128/64" Choke Valve Parts Tungsten Carbide Positive Choke Bean
65/64" -128/64" Choke Valve Parts Tungsten Carbide Positive Choke Bean 65/64" -128/64" Choke Valve Parts Tungsten Carbide Positive Choke Bean

Large Image :  65/64" -128/64" Choke Valve Parts Tungsten Carbide Positive Choke Bean

Product Details:
Place of Origin: China
Brand Name: CCSC
Certification: API
Model Number: 65/64" -128/64"
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 30-40days
Payment Terms: T/T

65/64" -128/64" Choke Valve Parts Tungsten Carbide Positive Choke Bean

Description
Body Material: AISI 410SS Choke Bean Size: 65/64" -128/64"
Insert Material: Tungsten Carbide Alloy Available: Tungsten Carbide And Ceramic Choke Bean Are All Available
Medium: Oil And Gas Water, Sand
High Light:

positive choke bean

,

choke valve components

65/64" -128/64" Tungsten carbide +S.S Choke Beans for flow controlling

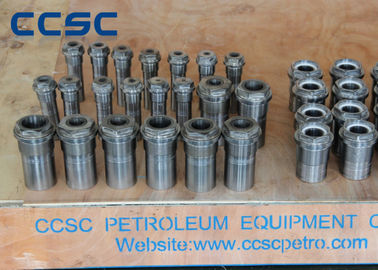

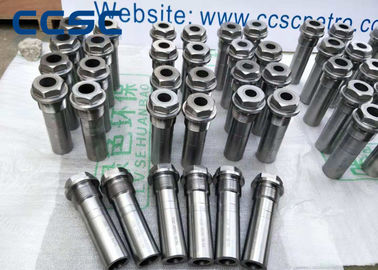

choke beanChoke bean is often used in the positive choke valve for controlling the flow, CCSC choke bean is same as Cameron type H2 big john choke bean, body Material: 410SS, lined with Tungsten Carbide (C10 or C25) or ceramic, to protect them from corrosive and abrasive wear.

On one side of the choke manifold, calibrated choke beans are used to control flow rate through the fixed choke box. Each bean is a specific diameter, usually in graduations of 1/64-inch, and is screwed into the choke box. These are the most common sizes (in inches) of choke beans used: 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1, 1-1/4, and 1-1/2. Depending on the type of equipment used, the size of the choke bean can be as large as 3 inches.

We can do the QPQ treatment on the body of choke bean, to enhance the surface hardness, it shows black color as below:

picture of choke bean with QPQ


Feature:

  • 1. 100% Interchangeable with Cameron H2 Chokes.
  • 2. Choke bean size: 4/64" ~ 192/64" increment with 1/64".
  • 3. Both ceramic liner and tungsten carbide liner are all available.
  • 4. Medium: oil and gas water, sand.
  • 5. Customizable size.
