1 1/4"-6 5/16" Wellhead Christmas Tree Parts One Way / Two Way Back Pressure Valve

1 1/4"-6 5/16" Wellhead Christmas Tree Parts One Way / Two Way Back Pressure Valve
1 1/4"-6 5/16" Wellhead Christmas Tree Parts One Way / Two Way Back Pressure Valve 1 1/4"-6 5/16" Wellhead Christmas Tree Parts One Way / Two Way Back Pressure Valve 1 1/4"-6 5/16" Wellhead Christmas Tree Parts One Way / Two Way Back Pressure Valve

Large Image :  1 1/4"-6 5/16" Wellhead Christmas Tree Parts One Way / Two Way Back Pressure Valve

Product Details:
Place of Origin: China
Brand Name: CCSC
Certification: API 6A
Model Number: One Way and Two Way
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 30-40days
Payment Terms: T/T

1 1/4"-6 5/16" Wellhead Christmas Tree Parts One Way / Two Way Back Pressure Valve

Description
Working Pressure: 2,000psi-20,000psi Working Temperature: -46℃-121℃(L-U)
Size: 1 1/4" - 6 5/16" Precessing Type: Forging
Medium: Oil,natural Gas,mud Material Class: AA-HH
High Light:

wellhead casing hanger

,

xmas tree wellhead

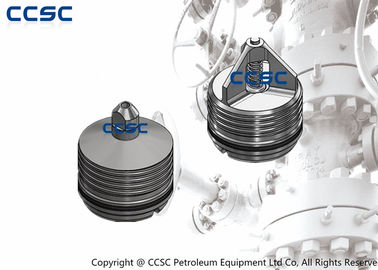

One Way and Two Way Back Pressure Valve with size from 1 1/4"-6 5/16" suitable for Wellhead Christmas Tree



Back Pressure Valve is installed inside the tubing hanger for holding pressure from below to isolate well pressure during the wellhead installation, CCSC provides the back pressure valve which is same as Cameron back pressure valve type 'H', both two way BPV and one way BPV are available, the most common size we have manufactured is 6 5/16" and 4", the working pressure is upto 20,000PSI.



back pressure valve, two way, one way


Two Way Back Pressure Valve

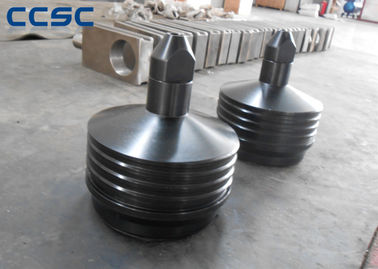

One Way Back Pressure Valve


CCSC Back Pressure Valve feature:

  • 1. Interchangeable with Cameron back pressure valve type 'H'.
  • 2. The body & piston material can be AISI 410SS, 17-4 PH, Inconel 718, etc, which is suitable for H2S service.
  • 3. H2S service is used up to 20,000psi.
  • 4. Size available from 1 1/4" - 6 5/16".

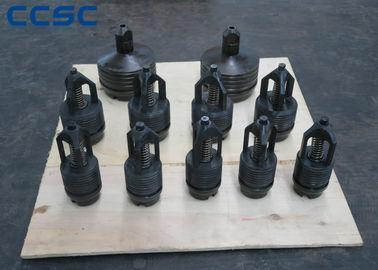

back pressure valves ready to ship


Several two way back presseure valves ready to ship
