Product Details:
|
| Size: | 1"- 4" | End Connection: | Weco Hammer Union, Flange, Thread |
|---|---|---|---|
| Working Pressure: | 2000 - 15,000PSI | Service: | Oil, Gas, H2S Service |
| Processing Type: | Forging | Material: | Alloy Steel |
| Temperature: | -29 - 121 Centigree | Color: | All Color |
| High Light: | threaded steel pipe fittings,swivel joint pipe fittings |
||
Description:

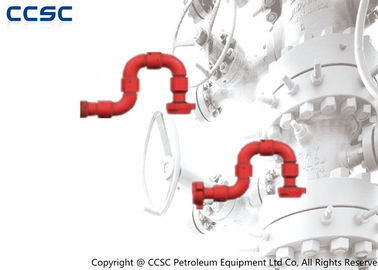

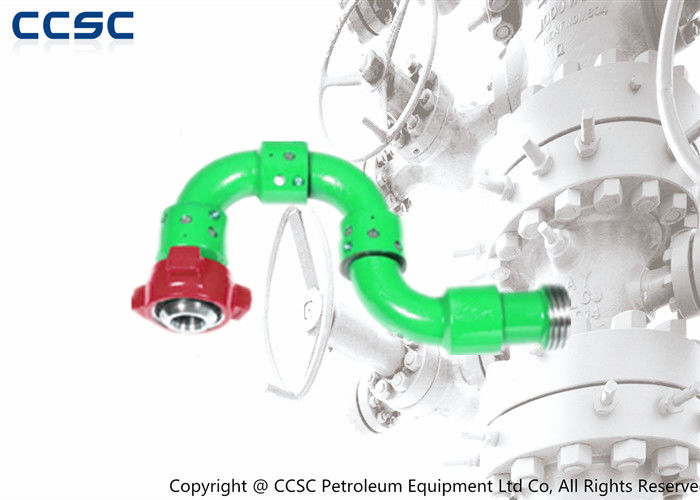

High Pressure Swivel Joint is made of high -strength alloy steel and through heat treatment,so that the rated working pressure intensity is ensured and the service life is prolonged.Our Swivel joint is equipped with a steel ball in hardened orbit,so it can rotate flexilby.Both ends can be connected with NPT threads or Unions ,applicalbe to various ways of pipe installation. Our Swivel Joints falls into 2 types: Long Radius and short Radius.
Specification:
1.Pressure of work : 2000PSI to 15000PSI
2.Norminal Menstruation: 1" ~4"
3.Working Temperature: -29degree ~121 Degree(PU grade)
4.Standard :API 16C &NACE MR0175
Swivel Joint Styles:
