High Pressure Wellhead Christmas Tree Components Durable Forged Casing Head

High Pressure Wellhead Christmas Tree Components Durable Forged Casing Head
High Pressure Wellhead Christmas Tree Components Durable Forged Casing Head High Pressure Wellhead Christmas Tree Components Durable Forged Casing Head High Pressure Wellhead Christmas Tree Components Durable Forged Casing Head High Pressure Wellhead Christmas Tree Components Durable Forged Casing Head

Large Image :  High Pressure Wellhead Christmas Tree Components Durable Forged Casing Head

Product Details:
Place of Origin: China
Brand Name: CCSC
Certification: API 6A
Model Number: Casing head
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 30-40days
Payment Terms: T/T

High Pressure Wellhead Christmas Tree Components Durable Forged Casing Head

Description
Working Pressure: 2,000psi-20,000psi Medium: Oil,natural Gas,mud
Working Temperature: -46℃-121℃(L-U) Material Class: AA-HH
Specification Class: PSL1-PSL4 Performance Class: PR1-PR2
High Light:

wellhead casing hanger

,

oilfield christmas tree

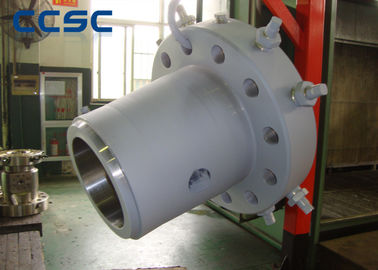

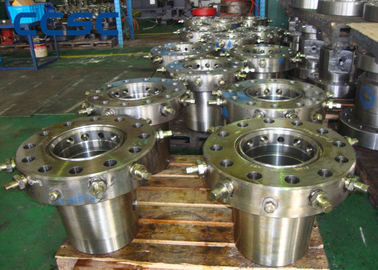

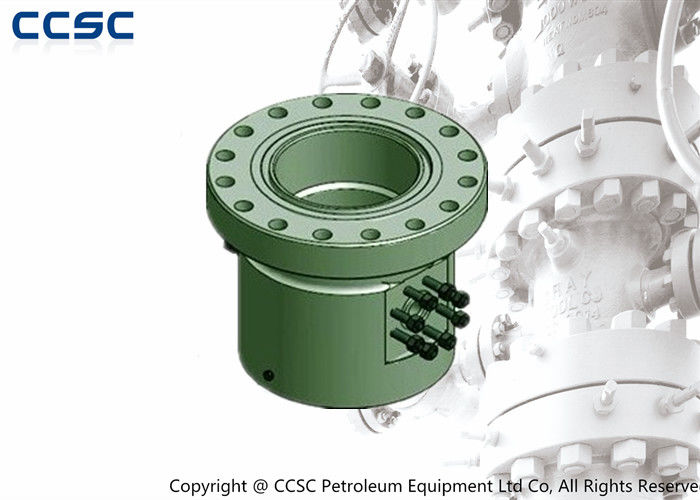

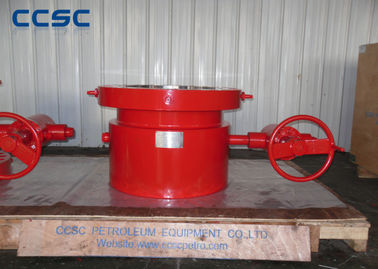

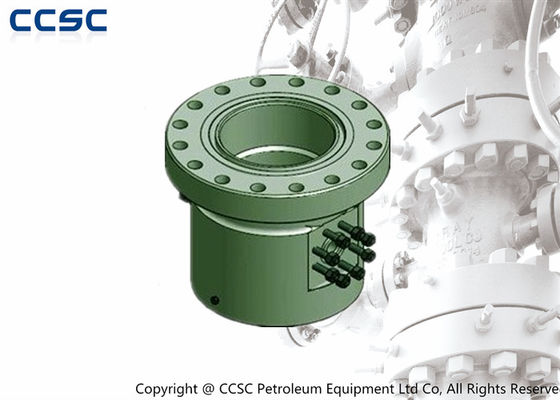

Forged casing head with API 6A suitable for high pressure Wellhead Christmas Tree



Casing Head is the very important equipment used in drilling process. casing head can control the wellhead pressure,casing head are often welded or screwed on the top of the conductor pipe or the casing then become a part of the wellhead system of the oil well.

Casing Head has a straight bore bowl with 45°landing shoulder design which avoids damage to sealing areas by drilling tools and prevents test plug and bowl protector wedging problems when pressure is applied.

Casing Head provided by CCSC are normally furnished with threaded outlets and studded outlets and also can be manufactured by request. Bottom connections can be furnished threaded or slip-on for welding.

Casing Head provided by CCSC can used for single completions and model of dual completions.

tubing head drawing

Feature:

  • 1. Versatile straight-bore design,Uses a 45°landing shoulder.
  • 2. Accepts a wide variety of slip and mandrel casing hangers.
  • 3. Has a additional lockscrews for Bowl protection.
  • 4. Allows use of lockscrews to retain hanger.
  • 5. Three different types of outlets: Line pipe, Flanged (Studded) Extended flanged outlets.
  • 6. Multiple bottom connections, such as: Slip-on weld, Slip-on weld with O-ring, Threaded and Sure Lock.
